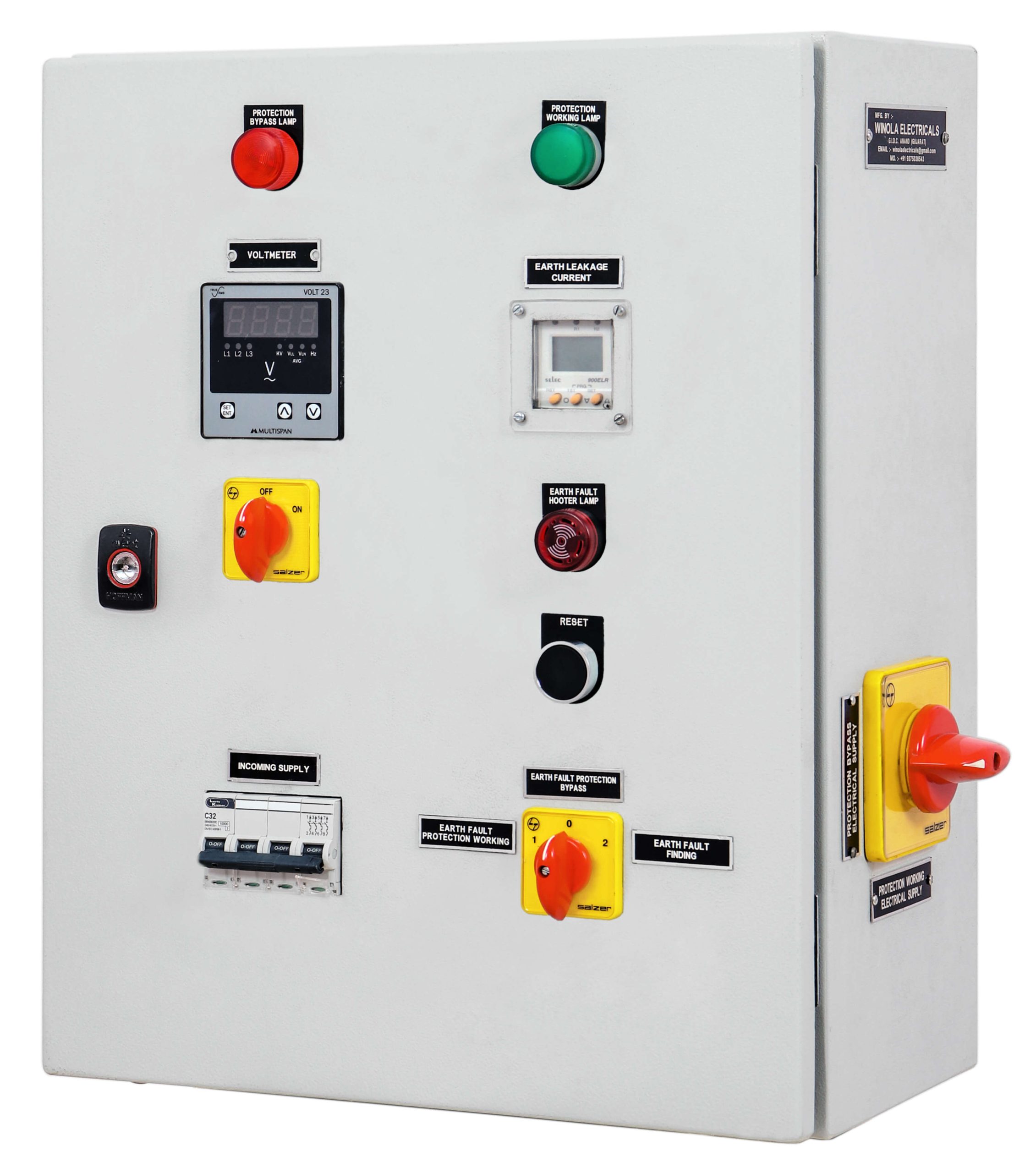

Electrical Protection Distribution Panel- 50 Amp (30 KW)

This Panel will distribute Electrical Power with Protection against Earth fault, Voltage variation, and Short circuit As a result Electric shock, Electric fire, Damages of components, and Increasing in the Electricity bill amount due to Earth leakage current will be avoided.

Specification

Wall mounted Electrical Power distribution Panel fabricated from mild steel sheet dust and vermin proof duly powder coated consists of MCB, Contactor, Switch, Terminals, Voltmeter, VSS, Voltage variation and Earth fault Protection device, etc.
The Incoming and Outgoing cable shall be connected to the panel for Power distribution.

Overall Dimension of Panel 400 (L) x 500(H) x 200(D) mm (30KW load)

Working of Protection Device

Earth Fault Protection

  • At the time of Electric shock/Earth fault, Electrical supply will be off with Hooter noise lamp.
  • Now Press the Reset Push button on panel, so Supply will be on.
  • During the Electric shock/Momentary Earth fault, Hooter noise lamp will be off.
  • During the existence of Earth fault, Hooter noise lamp will remain in on condition so the Earth fault can be located
  • If you want to locate the Earth fault after some time, then Put the switch at “Earth fault Protection Bypass” position.
  • To locate the Earth fault, Put the switch at “Earth fault finding” position. At the time of Earth fault, there will be Hooter noise lamp so Earth fault can be located. After clearing of Earth fault, Put switch at “Earth fault Protection working” position.

Voltage Variation Protection

At the time of Voltage variation, The electrical supply will be off, After receipt of proper voltage, the supply will be automatically on.

Short circuit Protection

At the time of Short circuit, MCB will trip. Electric supply will be off. After clearing of the fault, MCB can be made on and supply will be on.

Note – There will not be any breakdown supply problem due to any problem in Voltage variation / Earth fault protection device.
